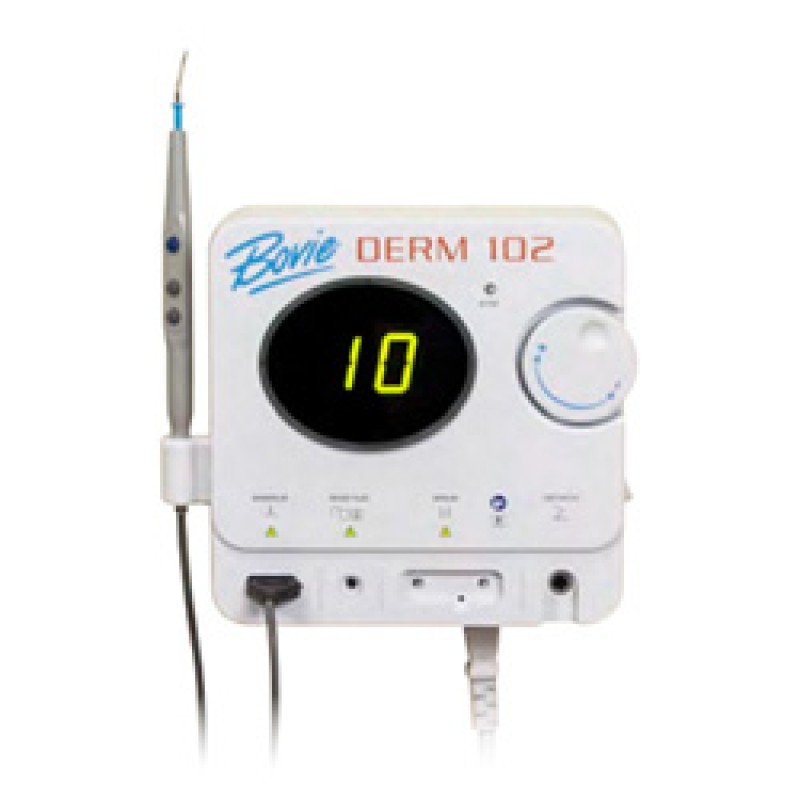

For the practitioner utilizing bipolar electrosurgery, Bovie offers the Derm 102 High Frequency Desiccator with 10 watts of bipolar power, adjustable in 1/10th watt increments. To utilize this feature the A827V bipolar cable, a bipolar forcep and footswitch activation are required (sold separately).
The Derm 102 is packaged ready to use. The units come with a total of 18 disposable dermal tips.
- DIMENSIONS AND WEIGHT
- Height 2.7” (69mm)
- Width 7.2” (184mm)
- Length 8.2” (208mm)
- Weight < 1.4 kg (< 3 lbs)
- MAINS CONNECTION
- Main Voltage: 100 – 240 VAC ± 10%
- Main Frequency: 50 – 60 Hertz
- Main Current: 320mA Max.
- Power Consumption: 28 VA
- SAFETY
- Basic Construction: In accordance with EN 60601-1
- Mode of Operation: Intermittent Operation
- Output Type: TYPE BF
- Duty Cycle: 10sec on / 30sec off
- Main Fuses: T 400mAL, 250V
- Warranty - (Unit) - 4 years
The Bipolar Kit Includes: A827V Bipolar Cable, A803 Footswitch and an A823 Reusable Bi-Polar Forcep.
