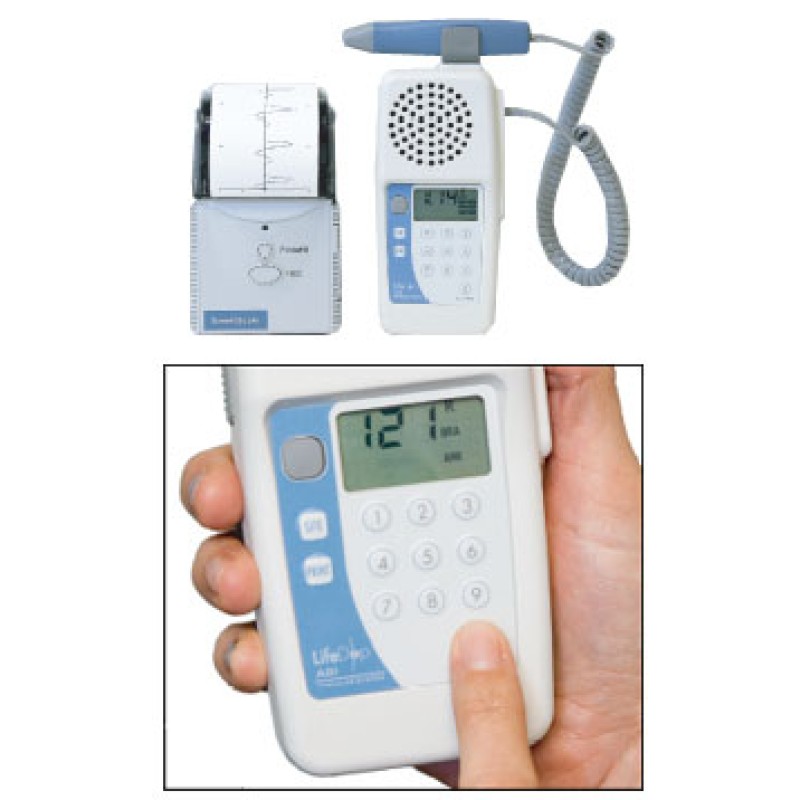

Summit LifeDop 300 ABI Hand-Held Doppler

Economical Hand-Held Doppler System with Faster ABI Calculation and Waveform Printout

Perform the ABI Exam for P.A.D. Diagnosis Faster and Easier with the LifeDop 300 ABI

• Keypad for easily entering presure date and calculating the indices
• Stores pressure date and two ankle waveforms prior to printing
• Proven technology: bi-directional probe and high speed printer
• Improved flow direction indicator on display

• Bi-directional 8 MHz high sensitivity probe
• Separate waveforms indicate flow toward and away from the probe
• Auto-scaling and no calibration required
• 200-4,000 Hz bandwidth covers perifpheral applications
• User replaceable probe cable
• Low battery indicator
• Long battery life

• Calculates ABI for both sides using the higher of the two arm pressures
• Accepts pressures from 30 to 299 mmHg
• Stores Doppler waveform from each ankle for printing

Included:

• Vascular Doppler
• Portable Printer w/ Cable
• 8MHz Bi-Directional Probe
• Aneroid
• 2 - 10cm Cuffs
• 2 - 12cm Cuffs
• Adhesive-backed label paper
• Report forms
• ABI Training video
• ABI chart
• Ultrasound Gel (60g)
• Carrying Case
